Code: 6037112
Loading...
| Plate thickness | 1,25 mm | Dimension R | 50 mm |
|---|---|---|---|

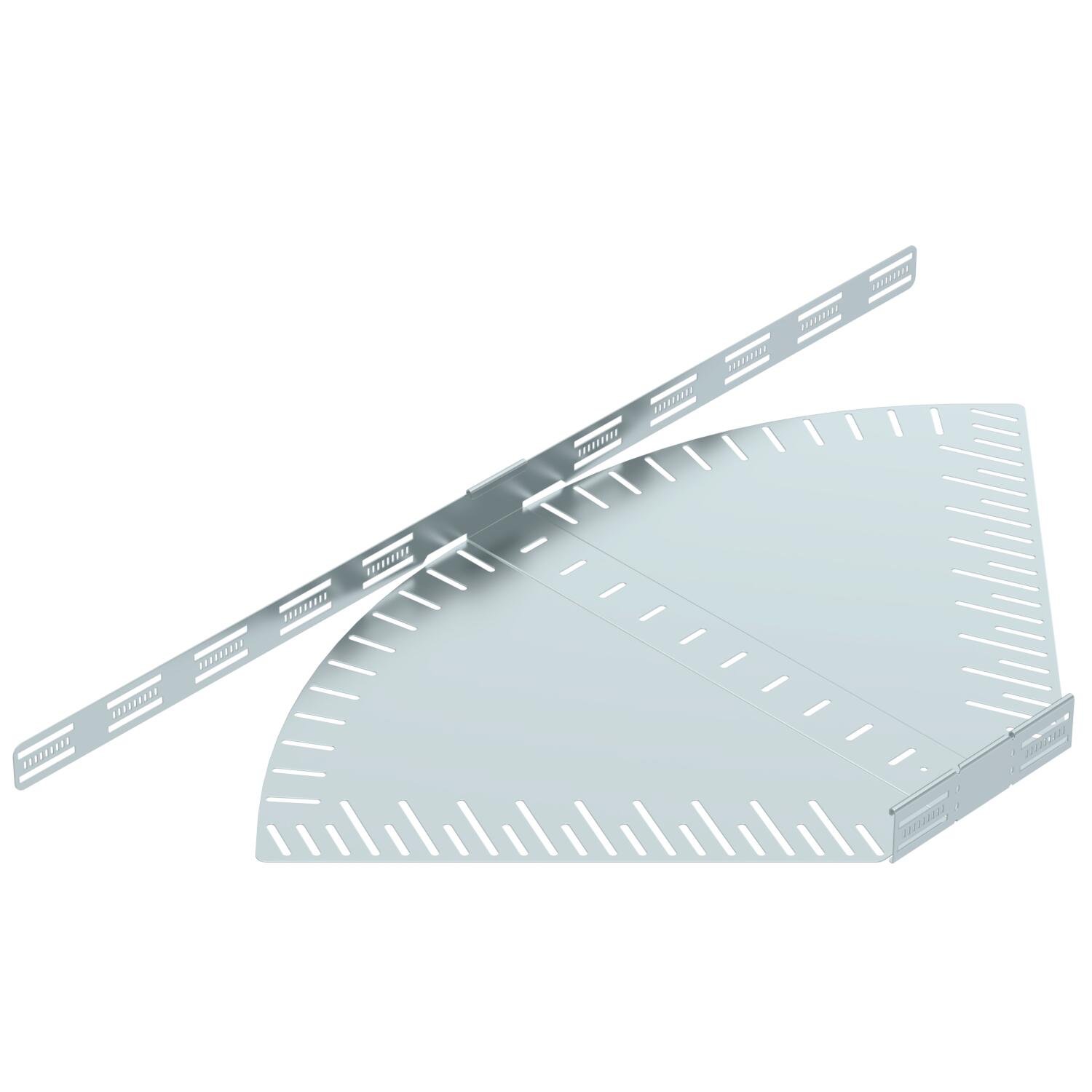

| Type | Adjustable bend_complete | Recommended quantity of bolts | 16 St. |
| Permitted temperature range, min. | -20 °C | Permitted temperature range, max. | 120 °C |
| Material thickness, floor plate | 1,25 mm | Change of direction | Horizontal |
| Bend (angle) | Adjustable | With cover | no |
| Type of connector, cable support system | screwed/clamped | NATO hole pattern | no |
| Mounting perforation in base | yes | Connector version | Integrated connector |
| Colour | zinc | Width | 600 mm |
| Wide-span version | no | Side perforation | yes |
| Rustproof steel, pickled | no | Rail thickness | 1,25 mm |
| Maintain electrical functions | no | Height | 60 mm |
| Dimension B | 600 mm | Surface | Strip galvanized |
| Material | Steel | Dimension L | 1150 mm |
| Dimension | 60x600 |
